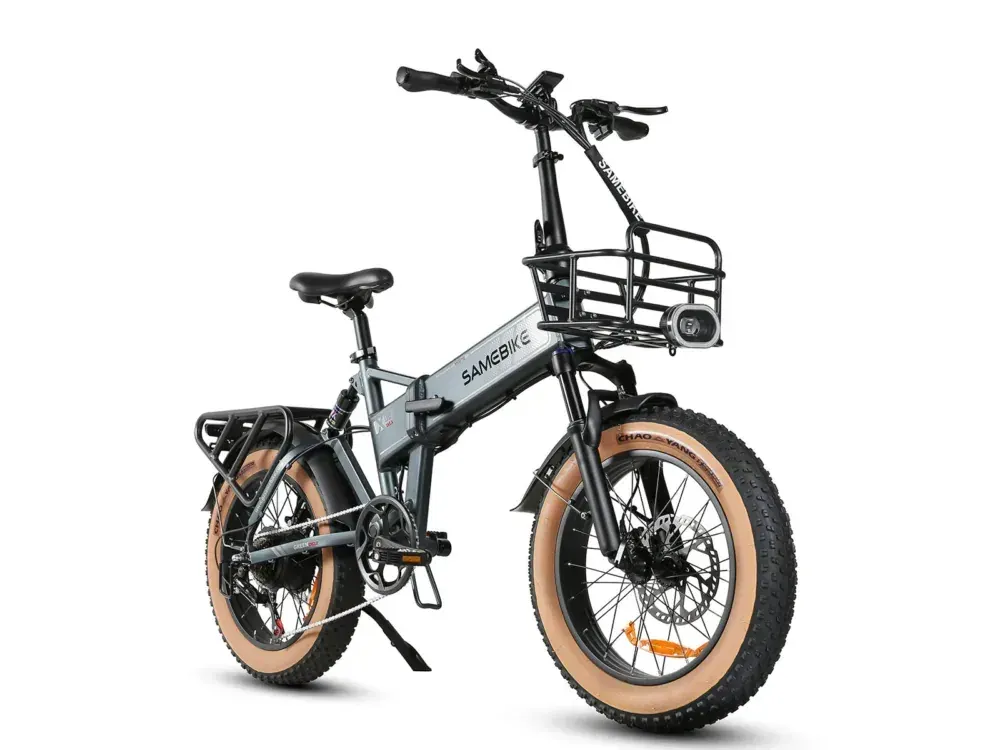

Samebike XWLX09-II Fat Tire Mountain Ebike
SKU: P64011
SPEED15.5 Mph
RANGE68 Miles

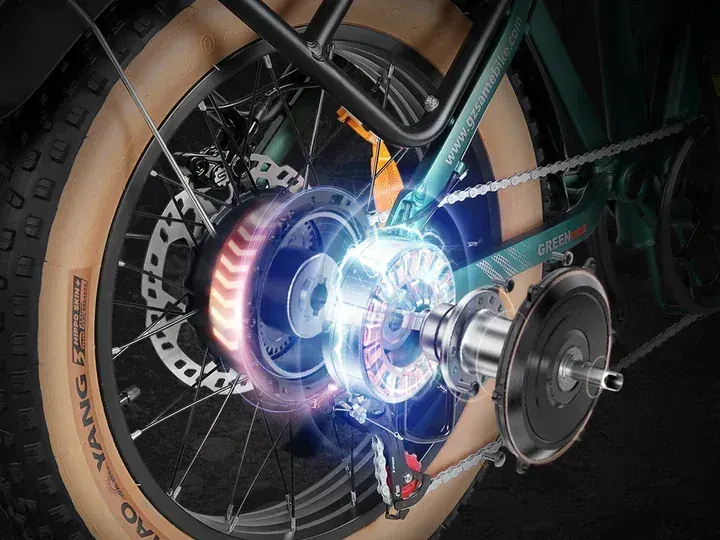

MOTOR250W
BATTERY15Ah
CHARGING4-6 Hours
WEIGHT74 lbs
Adjustable Cycle Helmet£38.99
Front and Rear Light Set£44.99
In stock now, a similar model
Samebike LO26 Plus Fat Tire Foldable E-Bike£849.00In stockView
This Model Is Fully Compliant With UK Road Regulations
This bike is built to comply with UK Electrically Assisted Pedal Cycle (EAPC) regulations, meaning it can be used on public roads and cycle paths without registration, tax, or a licence. Motor assistance is limited to 250W and cuts off at 15.5 mph (25 km/h).
See UK LegislationThis one carries 720 Wh of battery. The maker quotes 68 mi; in mixed riding with some hills, expect nearer 51 mi. A full charge costs about £0.20. Across a year that is roughly £984.00 less than making the same journeys by car, so the bike pays for itself in about 10 months. Everything here is worked out from this bike's own specification. Estimates, not promises: the assumptions are printed underneath.
Range you can expect
| Low assist, flat roads | 68 mi |
|---|---|
| Mixed riding, some hills | 51 mi |
| Full assist, loaded or hilly | 37 mi |
| Riding time on a charge | 4 h 23 min |
What it costs to run
| A full charge | £0.20 |
|---|---|
| Every 100 miles | £0.29 |
| Electricity for a year | £6.00 |
| The same year by car | £990.00 |
| You keep | £984.00 |
| Pays for itself in | 10 months |
Worked out from the specification
| Battery energy | 720 Wh |
|---|---|
| Energy per mile | 10.6 Wh |
| Charger output | 3.8 A |
| Power to weight | 7.4 W/kg |
| You can carry | 331 lb |
Based on £0.245 per kWh, £0.45 per mile to run a small car, and 2,200 miles a year. Charging is costed at the socket, not at the battery.
Adjustable front fork, rear suspension, and 68 miles
The SAMEBIKE XWLX09-II has an adjustable fork and rear suspension, hydraulic brakes and a claimed 68 miles, at £819.
250W and 15.5 mph: it meets the EAPC rules, so there is no licence, no tax and no registration.

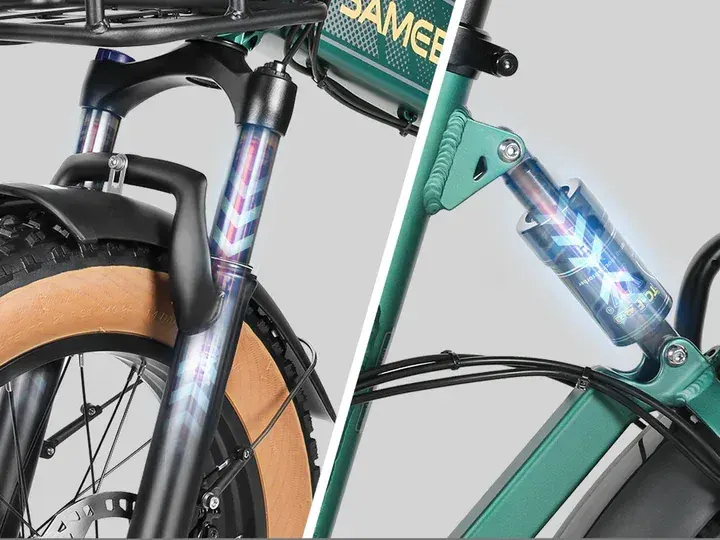

Suspension at both ends, and the fork is adjustable

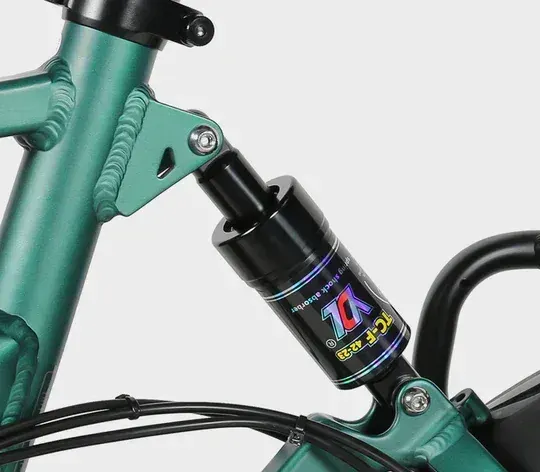

SAMEBIKE lists an adjustable front fork and a rear shock rather than a fork alone.
- Adjustable means set to your weight, not to an average rider's
- Both ends work, so both wheels stay on the ground

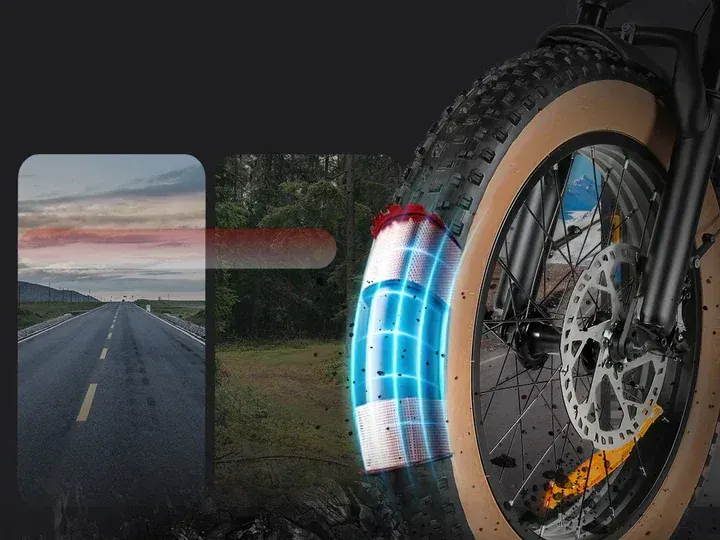

- On 4-inch tyres run soft, that is three stages of cushioning

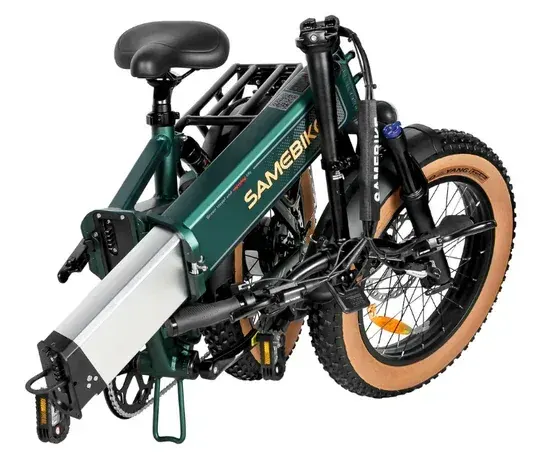

- And it folds to 95 × 52 × 79 cm
SAMEBIKE publishes both ranges

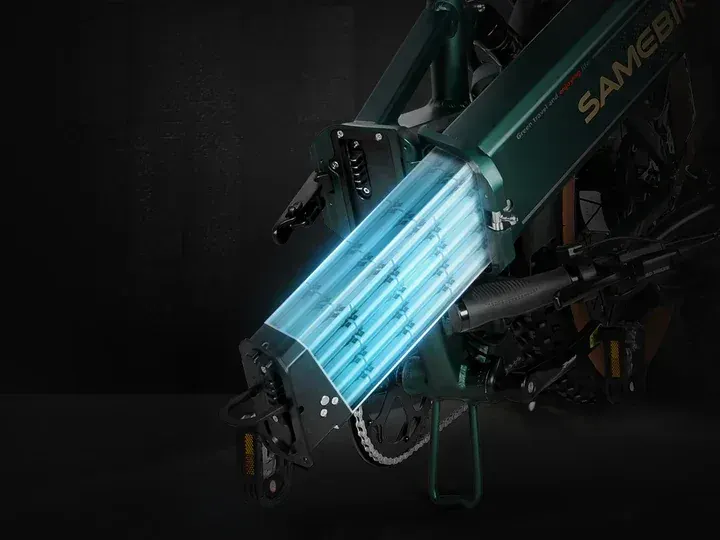

Fifty-five kilometres on the throttle alone, up to 110 with pedal assist, from a 48V 15Ah pack.
Our table carries 68 miles, better than 80% of our catalogue. The throttle-only figure is the one to hold on to if you plan to let the motor work. Four to six hours for a full charge, which is short for this capacity.

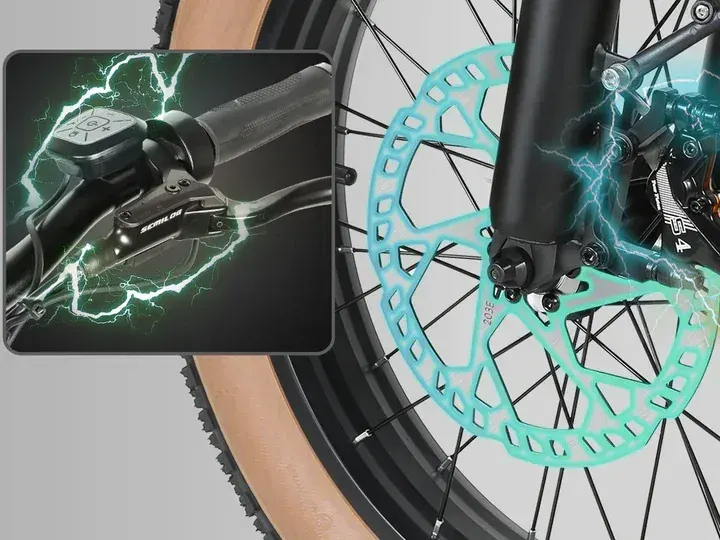

Hydraulic brakes on a 74 lb bike
Hydraulic rather than cable, loaded to 331 lbs.
One finger is enough, they do not fade on a long descent, and they keep their bite in the wet. On a bike this heavy, cable discs would be the wrong economy.
A USB charger on the bike
SAMEBIKE fits a USB socket, so a phone charges from the main battery.

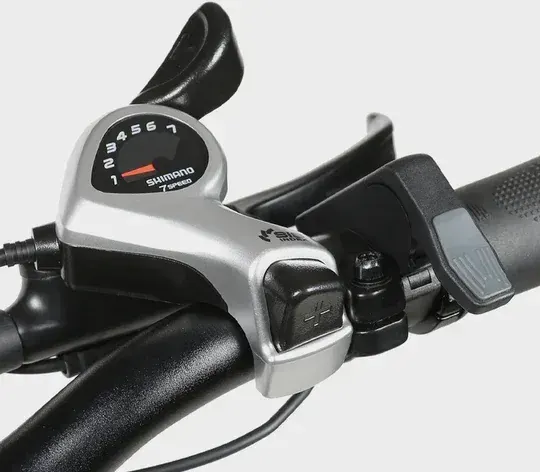

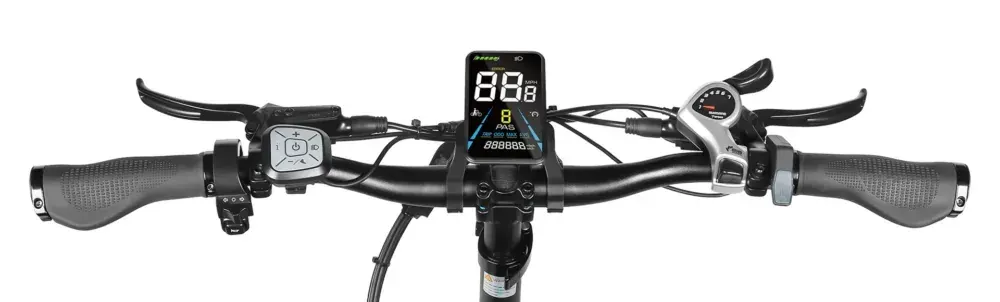

Five assist levels, a thumb throttle, a Shimano 7-speed transmission and a colour LCD display. The frame is aluminium and will not rust in a damp shed.
331 lbs of payload, on a bike that folds
More than 58% of our catalogue, and on a hinged frame that is the remarkable part.
The hinge is the weak point of any folding bike, and 331 lbs means it was engineered properly. Unfolded the bike is 178 × 66 × 120 cm.
Before the first ride, and who it is for
SAMEBIKE does not publish a torque figure for this model and that row stays empty below rather than being filled in on a guess.
- Unfold and lock the frame and the stem, then check both again after the first hour
- Bed the hydraulic brakes in at walking pace before the first descent
- Set the fork and the rear shock to your weight
- Run the tyres soft for grip, firmer for range
- Allow four to six hours for the first charge
Buy it for the suspension and the range at this money. It is a legal fat-tyre bike that works off the tarmac and puts away between rides.
- BRAND
- SAMEBIKE
- CATEGORY
- Fat Tire
- MOTOR POWER
- 250W
- RANGE
- 68 Miles
- SPEED
- 15.5 Mph
- BATTERY
- 15Ah
- WEIGHT
- 74 lbs
- CHARGING TIME
- 4-6 Hours
- BRAKE SYSTEM
- Hydraulic disc brakes
- FRAME MATERIAL
- Aluminum alloy
- MAXIMUM LOAD
- 331 lbs
- INPUT VOLTAGE
- 48V
- TIRE SIZE
- 20 inch
- TORQUE
- N/A
The Samebike XWLX09-II Fat Tire Mountain Ebike states 250W, 68 Miles and 15.5 Mph, and below it is set against the DYU FF500 20 Inch Fat Tire Folding Electric Bike. Every figure the two disagree on is marked. Choose a different bike to compare it with whichever one you are also considering.
7 of 12 specifications differ. View DYU FF500 20 Inch Fat Tire Folding Electric Bike
